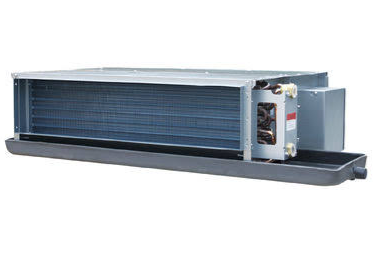

EKCW 1400DA Fan Coil Unit: The Smart Choice for Concealed Ceiling Comfort

Looking for a reliable way to cool and heat large spaces without cluttering the room? The EKCW 1400DA Fan Coil Unit might be exactly what you need! This horizontal water recessed ductable unit tucks neatly above your ceiling, delivering powerful, even airflow while staying completely out of sight. It’s a favorite for offices, hotels, malls, and homes that want serious comfort with a clean, modern look.

In this guide, we’ll walk you through everything — the performance numbers, the smart design features, where it works best, and how to choose the right setup for your project. By the end, you’ll know exactly why this unit is such a popular pick for ducted air distribution.

What Is the EKCW-DA 1400?

The EKCW-DA 1400 is a horizontal water recessed ductable fan coil unit built for concealed ceiling installation. In plain terms, it’s a hidden workhorse that moves conditioned air through ducts to wherever you need it most.

It runs on a centrifugal fan with three-speed operation and delivers 75 Pa of external static pressure. That extra pressure matters a lot! It means the unit can push air through longer duct runs and still keep rooms comfortable from corner to corner. Its compact concealed design makes it perfect for both commercial and residential spaces that value a tidy, uncluttered ceiling.

Think of it as comfort you can feel but never see. That’s the beauty of a well-designed Ducted Fan Coil Unit — all the performance, none of the visual clutter.

Why Choose the EKCW 1400DA Fan Coil Unit?

Let’s talk about what makes this unit stand out. When you’re investing in climate control, you want strong numbers and smart engineering. This one delivers on both.

Here’s what you get:

• 10.49 kW nominal cooling capacity for strong, steady cooling
• 20.89 kW nominal heating capacity to keep spaces warm in cooler months
• Airflow up to 1404 CFM for excellent room coverage
• 75 Pa external static pressure for longer duct runs
• Three-speed fan operation so you can fine-tune comfort
• Copper tube coil with hydrophilic aluminum fins for efficient heat transfer
• Concealed ceiling installation for a clean, modern look
• Built for ducted air distribution across multiple rooms
• Designed for convenient installation and easy maintenance

That copper tube coil deserves a special shout-out. Copper transfers heat beautifully, and the hydrophilic aluminum fins help drain moisture quickly. The result? Better efficiency and a longer service life for your system.

EKCW 1400DA Fan Coil Unit Performance at a Glance

Want the quick version? This unit balances high capacity with quiet, flexible operation. With a sound pressure level of just 50.9 dB(A) on high speed, it keeps things comfortable without the distracting hum. Pair that with its three-speed fan and you’ve got a Horizontal FCU Unit that adapts to busy daytime crowds and quiet evenings alike.

Whether you’re conditioning a packed shopping floor or a calm hotel suite, this unit gives you the control you need.

Full Technical Specifications

Here’s the complete breakdown for engineers, contractors, and specifiers who want the hard numbers. Keep this table handy during your planning!

These specs tell a clear story: strong capacity, manageable power draw, and a design built for real-world duct layouts.

Key Benefits of a Concealed Horizontal Design

Why do so many projects lean toward this style of unit? The concealed horizontal layout brings practical wins you’ll appreciate every single day.

Clean, Space-Saving Installation

Because the unit hides above the ceiling, you free up walls and floor space entirely. This matters hugely in premium retail, hotel lobbies, and modern offices where appearance counts. Nobody wants a bulky box ruining a beautiful interior!

Even, Comfortable Airflow

A Ducted Fan Coil Unit distributes air through multiple grilles instead of one spot. That means fewer hot and cold zones and more consistent comfort throughout the room. The forward-curved centrifugal fan handles this job smoothly and quietly.

Easy Maintenance Access

Smart engineering makes service simpler. The unit is designed for convenient installation and maintenance, so technicians can reach key components without a headache. Less downtime means happier building owners.

Flexible Speed Control

With three fan speeds, you can match output to real demand. Crank it up during peak hours, then ease it back when the building quiets down. This flexibility helps with both comfort and energy use.

Where Is the EKCW-DA 1400 Used?

This unit is a true multitasker. Its blend of capacity, quiet operation, and concealed design makes it a great fit for many settings. Here’s where it shines:

• Offices
• Hotels
• Shopping malls
• Hospitals
• Banks
• Shops
• Residential buildings
• Commercial buildings
• Concealed ceiling ducted applications

Picture a busy bank branch staying cool through a rush of customers, or a hotel suite that heats up gently on a chilly night. That’s the kind of versatility this EKCW 1400DA Horizontal Fan Coil Unit brings to the table. It adapts to the space instead of forcing the space to adapt to it.

How to Choose the Right Fan Coil Unit for Your Project

Picking the right unit isn’t just about grabbing the biggest numbers. It’s about matching the equipment to your actual space and needs. Here are a few tips to guide your decision!

Match Capacity to Your Space

Start with your room size and cooling load. The 10.49 kW cooling and 20.89 kW heating capacity suits medium to large areas well. If your space is bigger, you may need multiple units or a larger model. An undersized unit works too hard, while an oversized one wastes energy.

Check Your Duct Layout

How far does the air need to travel? The 75 Pa external static pressure makes this EKCW 1400DA Horizontal Fan Coil Unit a strong choice for longer or more complex duct runs. Always share your duct plans with your HVAC engineer so they can confirm the fit.

Consider Noise Requirements

In quiet environments like hospitals or executive offices, sound matters. At 50.9 dB(A), this unit stays pleasantly quiet, especially on lower fan speeds. A good Horizontal FCU Unit should cool effectively without drawing attention to itself.

Plan for Water and Power Connections

Confirm your water flow and electrical supply early. This unit runs on 220–240V single-phase power and uses an Rc3/4 condensate drain. Getting these details right upfront saves costly surprises later.

Think About Long-Term Maintenance

Choose equipment that’s easy to service. A copper tube coil with hydrophilic aluminum fins resists corrosion and drains well, which supports a longer lifespan. Reliable, serviceable design pays off for years.

Why the EKCW 1400DA Stands Out

When you combine strong capacity, flexible airflow, quiet operation, and a hidden design, you get a unit that quietly earns its keep. It’s engineered to handle demanding commercial duty while still being gentle enough for residential comfort. That balance is exactly what makes a Fan Coil Unit worth specifying.

For HVAC professionals and property owners alike, this model offers dependable performance you can plan around with confidence.

Frequently Asked Questions

What is the EKCW 1400DA Fan Coil Unit used for?

It’s used for cooling and heating medium to large spaces through concealed, ducted air distribution. You’ll find it in offices, hotels, malls, hospitals, banks, shops, and both residential and commercial buildings. Its hidden ceiling design keeps interiors clean and clutter-free.

How much cooling and heating does it provide?

The unit delivers 10.49 kW of nominal cooling capacity and 20.89 kW of nominal heating capacity. That makes it a strong, versatile choice for spaces that need reliable comfort in both hot and cold seasons.

Is the EKCW-DA 1400 quiet enough for offices and hospitals?

Yes! With a sound pressure level of 50.9 dB(A) on high speed, it runs comfortably quiet. Drop it to a lower fan speed and it becomes even more discreet, which is perfect for calm, noise-sensitive environments.

What makes it suitable for ducted installations?

Its 75 Pa external static pressure is the key. That pressure lets the unit push air through longer duct runs while still delivering strong airflow up to 1404 CFM. This is why it works so well as a Ducted Fan Coil Unit in multi-room layouts.

How is this Horizontal FCU Unit installed?

It mounts horizontally in a concealed position above the ceiling and connects to ductwork for air distribution. The design prioritizes convenient installation and easy maintenance access, so technicians can service it without major disruption.

What coil material does it use?

The unit features a copper tube coil with hydrophilic aluminum fins. Copper offers excellent heat transfer, while the hydrophilic fins help moisture drain quickly. Together they boost efficiency and support a longer, more reliable service life.

What power supply does it require?

It runs on a 220–240V, single-phase, 50Hz power supply and draws 2.78 A at high speed. Always confirm your electrical setup with a qualified HVAC installer before installation.

Ready to upgrade your space with dependable, out-of-sight comfort? The EKCW-DA 1400 brings together smart engineering, strong performance, and a clean concealed design that fits beautifully into almost any project. Reach out to our team today and let’s find the perfect cooling and heating solution for you!
