Description

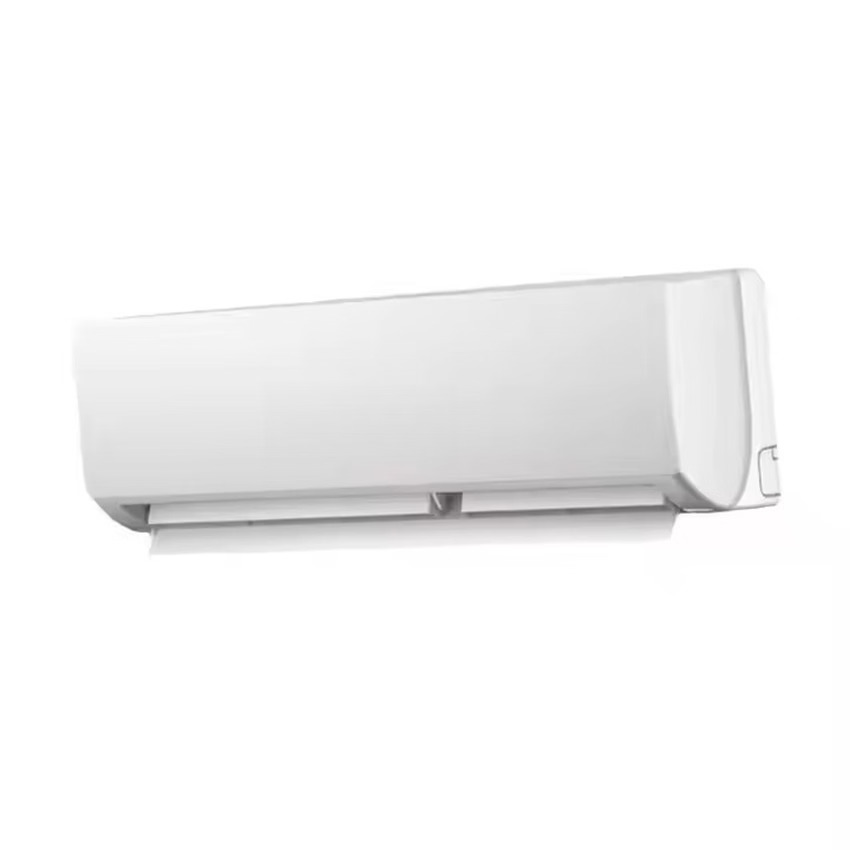

Euroklimat EKCW‑800M (2.0 RT, 630 CFM) is a compact, quiet, and energy‑efficient wall‑mounted fan coil unit — perfect for modern residential and commercial projects. With its durable copper coil, low noise, and stylish design, it’s a premium choice for HVAC Solution and clients seeking reliable comfort cooling.

Nominal air return cooling condition: 24°C (dry bulb)/18.0°C (wet bulb). Nominal fresh air cooling
condition: 34°C (dry bulb)/28°C (wet bulb).
 Nominal air return heating condition: 21°C (dry bulb). Nominal fresh air heating condition: 0°C (dry
bulb). Nominal heating water inlet/outlet temperature: inlet 60°C; outlet 50°C.

Type

• Wall Mounted Fan Coil Unit
• Compact design for modern interiors

❄️ Cooling Capacity

• Total Capacity: 2.0 RT (≈ 7.0 kW / 2.0 tons)
• Sensible Capacity: 1.83 RT
• Air Flow: 630 CFM

(HP equivalent: ~2.5 HP motorized cooling output)

📊 Specifications

• Power Input: 130 W
• Running Current: 0.87 Amp
• Water Flow Rate: 4.8 USGPM
• CHW Inlet/Outlet Temp: 47°F / 57°F
• Water Pressure Drop: 33 KPa
• Water Connection Size: 0.75 in
• Drain Connection Size: 0.75 in
• Noise Level: 37 dB
• Unit Weight: 27 Kg

🌟 Features

• High‑Efficiency Coil: Seamless copper tube bonded with corrugated aluminum fins
• Durability: Pressure tested at 3.3 MPa; leakage tested at 1.6 MPa
• Drain Pump: Included for easy condensate removal
• Fan Type: Centrifugal, direct‑driven joint transmission
• Motor: Single‑phase ball‑bearing capacitive motor — quiet and precise
• Protection: IP20 with Class B insulation
• Filter: Primary nylon filter (8 mm thickness) for clean air supply
• Air Supply Direction: Downward horizontal for uniform distribution

💡 Why Recommended

• Energy Efficient: Low power consumption (130 W) with strong cooling output
• Quiet Comfort: 37 dB noise level — ideal for bedrooms, offices, and hospitals
• Compact & Stylish: Wall‑mounted design saves floor space and blends with interiors
• Reliable Performance: Stable cooling with low water pressure drop
• Easy Maintenance: Accessible panels and washable nylon filter

🏢 Applications

• Residential: Villas, apartments, penthouses
• Commercial: Offices, hospitals, hotels, retail shops
• Institutional: Schools, clinics, libraries
• Ideal for medium‑sized rooms requiring efficient chilled water cooling

Why Choose EKCW‑800M

• Compact wall‑mounted design saves space
• Elegant appearance with premium finish
• Reliable cooling for residential and commercial spaces
• Low noise, low power, and high comfort — a perfect balance
