Description

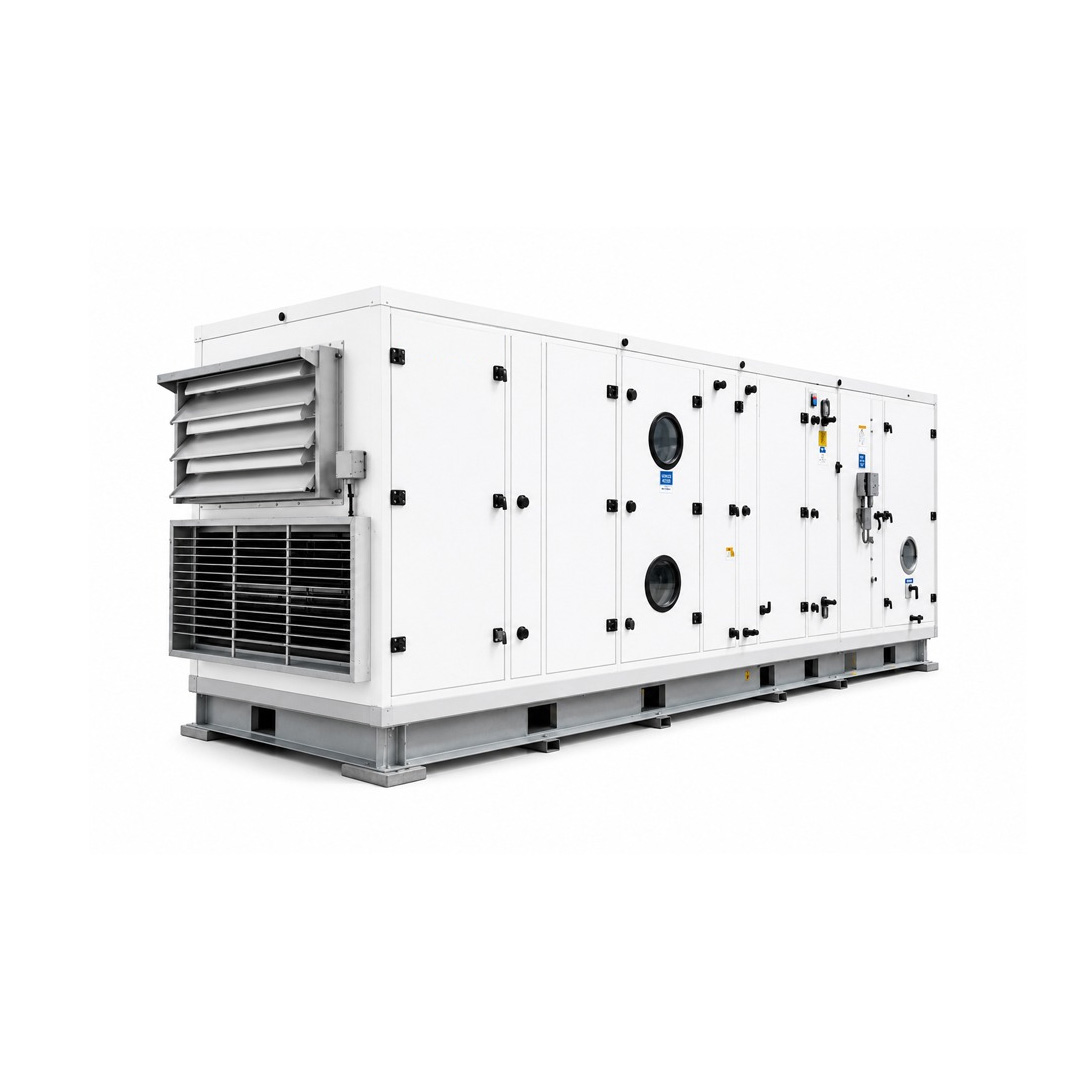

EKDM 2233 is an ultra‑capacity modular AHU designed for industrial, healthcare, and commercial mega‑projects requiring extremely high air volumes and strict air quality standards
With its thermal bridge‑free casing, advanced filtration system, and energy‑efficient fans, it ensures reliable comfort, purification, and durability. Its modular design allows flexible configuration for cooling, heating, humidification, and filtration, making it ideal for airports, pharmaceutical plants, mega hospitals, and large industrial complexes.
⚙️ Technical Data
| Parameter | Details |
|---|---|
| Model | EKDM 2233 |
| Rated Air Volume | 700,000 m³/h |
| Cooling Capacity | 1233 kW |
| Cooling Capacity in BTU/hr | 1233×3412≈4,207,000 BTU/hr |
| Tonnage Equivalent | ~351 TR (tons of refrigeration) |
| Fan Performance | High‑efficiency dual impellers, static pressure up to 2000 Pa |
| Motor Power | Approx. 220–250 kW (depending on configuration) |
| Pipe Diameter | DN 80–100 (depending on coil rows) |
| Water Flow Rate | ~40–50 L/s |
🌟 Features
- Ultra‑high air volume – rated at 700,000 m³/h, suitable for mega‑projects.
- High cooling capacity – delivers 1233 kW ≈ 4.2 million BTU/hr ≈ 351 TR.
- Thermal bridge‑free casing – prevents condensation, leakage, and ensures durability.
- Aluminum alloy outer frame – strong, stable, and resistant to deformation under heavy loads.
- Excellent thermal insulation – polyurethane foam with very low thermal conductivity (0.0188 W/m·K).
- High‑performance heat exchanger – copper tube coils, rust‑resistant fins, tested up to 1.6 MPa.
- Advanced filtration system – pleated primary + medium bag filters, optional HEPA for cleanrooms.
- Low leakage design – leakage rate only 0.02% at −1000 Pa, ensuring sterile airflow.
- Professional selection software – EK’s proprietary software guarantees accurate sizing and design.
- Intelligent control – supports sensors, actuators, and automation for efficient operation.
- AHRI & EUROVENT certified – globally recognized performance and reliability standards.
🏢 Applications
- Hospitals & OTs – sterile air supply for surgical environments.
- Pharmaceutical plants – controlled clean air for production.
- Airports & metro stations – large‑scale ventilation and comfort cooling.
- Industrial facilities – manufacturing halls, cleanrooms, data centers.
- Commercial complexes – malls, hotels, and mega‑offices requiring high IAQ.
✅ Why Recommended
- Ultra capacity – ideal for mega‑projects needing 700,000 m³/h airflow.
- Sterility & IAQ compliance – meets AHRI and EUROVENT standards.
- Energy efficiency – optimized fans and coils reduce operating costs.
- Durability – premium casing and insulation ensure long service life.
- Scalability – modular sections allow expansion or upgrades.
🔑 Benefits
- Improved IAQ for sensitive healthcare and pharma environments.
- Reduced operating costs via energy‑efficient design.
- Long‑term reliability with Euroklimat engineering.
- Versatility across healthcare, industrial, and commercial projects.
🌍 Why Most Demanding in HVAC Systems
- Global certifications (AHRI, EUROVENT) make it trusted internationally.
- Flexible modularity adapts to diverse project needs.
- Proven reliability in hospitals, airports, pharma, and industrial plants.
- Energy‑saving design aligns with modern sustainability requirements.
