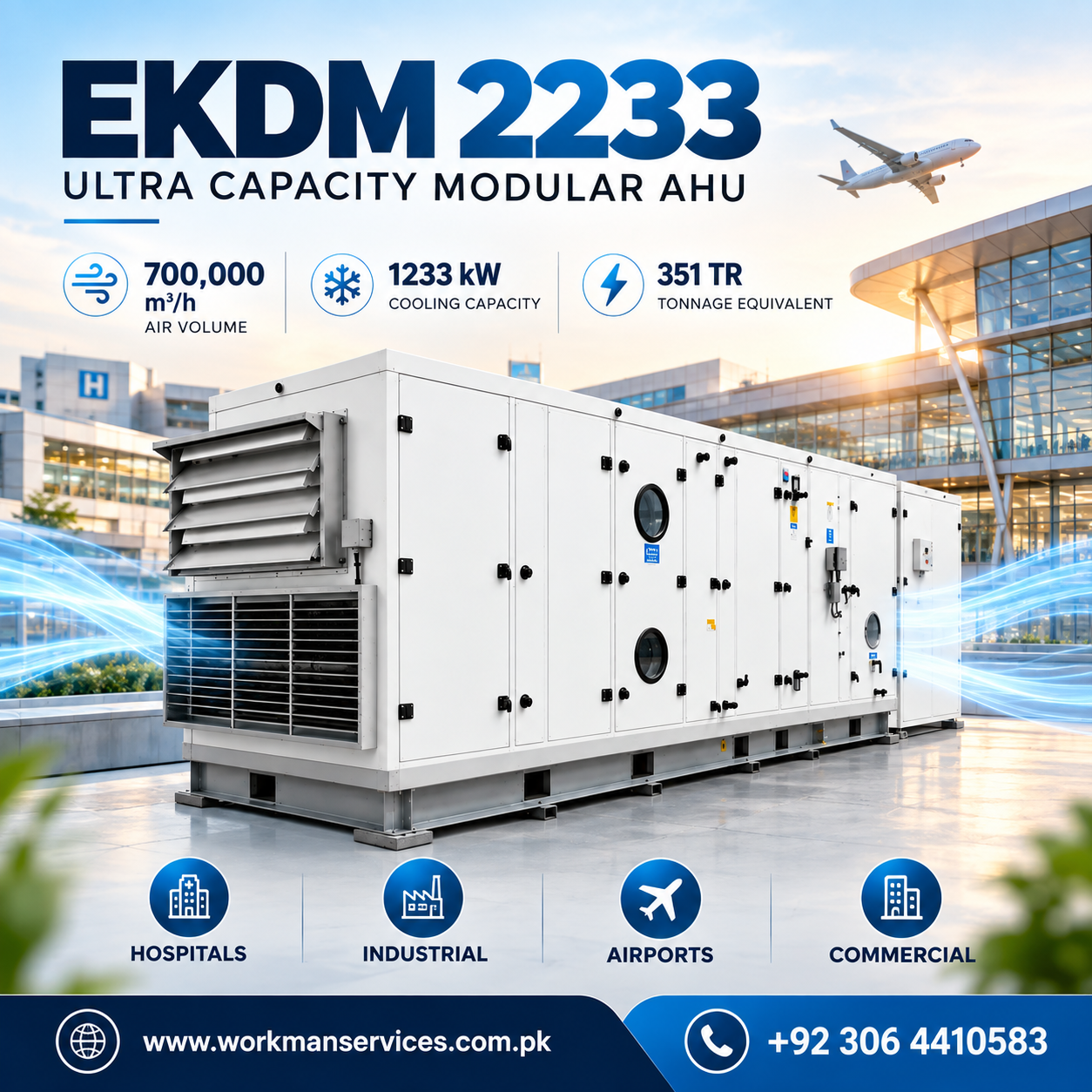

EKDM 2233 Air Handling Unit: Ultra-Capacity Cooling for Mega-Projects

Need to cool and purify air across an airport terminal, a mega hospital, or a sprawling industrial plant? That’s a serious challenge — and it deserves a serious machine! The EKDM 2233 Air Handling Unit is built exactly for those demanding, high-volume environments where ordinary units simply can’t keep up.

At Workman Services, we supply, install, and maintain advanced HVAC&R systems across Pakistan and the UAE. This ultra-capacity modular AHU is one of the most powerful solutions we work with, delivering a massive 700,000 m³/h of air alongside strict air quality control. If your project needs reliable comfort, sterile airflow, and long-term durability, this is the workhorse that gets it done.

What Makes the EKDM 2233 Air Handling Unit Special

Let’s cut to what matters most: this unit moves enormous volumes of air while keeping it clean, controlled, and comfortable. That combination is exactly why it’s chosen for the world’s most sensitive and large-scale buildings.

Here’s what you’ll love at a glance:

• Ultra-high rated air volume of 700,000 m³/h — perfect for mega-projects
• High cooling capacity of 1233 kW (≈351 TR, ≈4.2 million BTU/hr)
• Thermal bridge-free casing that prevents condensation and leakage
• Strong aluminum alloy outer frame that resists deformation under heavy loads
• Polyurethane foam insulation with very low thermal conductivity (0.0188 W/m·K)
• Advanced filtration with optional HEPA for cleanrooms
• AHRI and EUROVENT certified for globally trusted performance

Think of it as a complete air management system rather than just a cooling box. It handles cooling, heating, humidification, and filtration in one modular package — and that flexibility is a huge win for complex builds.

How This High Capacity Air Handling Unit Works

So how does it actually deliver such impressive results? It comes down to smart engineering across every section of the unit.

The heart of the system is a high-performance heat exchanger built with copper tube coils and rust-resistant fins, tested up to 1.6 MPa for pressure integrity. This keeps cooling consistent even under heavy year-round demand. Paired with high-efficiency dual impeller fans capable of static pressure up to 2000 Pa, the unit pushes clean, conditioned air through even the longest and most demanding ductwork runs.

Air quality is where this high capacity air handling unit really shines. A layered filtration setup — pleated primary filters plus medium bag filters, with optional HEPA — captures particles before they reach occupied spaces. And thanks to a remarkably low leakage rate of just 0.02% at −1000 Pa, you get sterile, controlled airflow that’s ideal for healthcare and pharmaceutical settings.

Because the design is modular, you can configure sections to suit your exact project. Need more filtration for a cleanroom? Extra humidification for a pharma line? The unit adapts, and it scales as your building’s needs grow.

Technical Specifications of the EKDM 2233 AHU

Numbers tell the story here, so let’s lay them out clearly. The table below covers the key specs that matter when you’re sizing and specifying this EKDM 2233 AHU for a project.

These figures make the unit a genuine heavyweight. To put 700,000 m³/h into perspective, that’s the kind of airflow needed to keep an entire airport concourse or a multi-block hospital comfortable and safe.

Key Features That Deliver Real Value

Specs are great, but what do they actually change for your building? Here’s how the standout features translate into everyday benefits:

• Thermal bridge-free casing → prevents condensation and heat loss → so your system runs efficiently and lasts longer.
• Aluminum alloy frame → strong and stable structure → so the unit holds its shape under heavy, continuous loads.
• Low-conductivity insulation (0.0188 W/m·K) → minimal thermal transfer → for lower energy bills and steadier temperatures.
• Copper tube coils tested to 1.6 MPa → reliable, leak-resistant heat exchange → so cooling stays consistent for years.
• Advanced multi-stage filtration → cleaner, healthier air → so sensitive environments meet strict IAQ standards.
• 0.02% leakage at −1000 Pa → near-airtight operation → for sterile, contamination-free airflow.
• AHRI & EUROVENT certification → independently verified performance → so you buy with total confidence.

Every one of these details adds up to a unit that’s dependable, efficient, and built to protect the people inside your building.

Who the EKDM 2233 AHU Is Best For

This isn’t a small-room unit — it’s engineered for large-scale, high-consideration projects. Wondering if it fits your build? Here are the ideal use cases:

• Hospitals and operating theatres — sterile, controlled air supply for surgical and critical-care environments.
• Pharmaceutical plants — clean, regulated airflow for production and packaging areas.
• Airports and metro stations — large-scale ventilation and comfort cooling for busy public spaces.
• Industrial facilities — manufacturing halls, cleanrooms, and data centers that demand robust industrial ventilation.
• Commercial complexes — malls, hotels, and mega-offices needing high indoor air quality at scale.

If your project falls into any of these categories, this unit is worth a close look. For smaller residential or single-office spaces, though, a compact split or cassette system will usually be the smarter, more cost-effective choice.

Why This Commercial Air Handling Unit Is in High Demand

Facility managers and consultants keep coming back to this model, and it’s easy to see why. As a commercial air handling unit, it ticks every box that matters for demanding builds.

First, the global certifications. AHRI and EUROVENT approval means the performance is independently verified and trusted worldwide — a real advantage when you’re specifying equipment for regulated sectors. Second, the modular flexibility lets a single platform serve wildly different projects, from a hospital wing to a factory floor. Third, its proven reliability across airports, pharma plants, and hospitals gives you peace of mind that it performs when it counts.

There’s also a strong sustainability angle. The optimized fans, efficient coils, and high-performance insulation work together to reduce operating costs and energy use — which aligns beautifully with modern green-building goals. A commercial air handling unit that saves money while improving air quality? That’s a genuine win-win.

Strengthening Industrial Ventilation and Indoor Air Quality

For large facilities, effective industrial ventilation isn’t a luxury — it’s essential for safety, productivity, and compliance. Poor air handling leads to stuffy spaces, contamination risks, and unhappy occupants. This unit tackles all of that head-on.

By combining massive airflow with multi-stage filtration, it keeps particulates, odors, and pollutants in check across huge floor areas. That’s exactly what manufacturing halls, cleanrooms, and data centers need to maintain reliable industrial ventilation and stable environmental conditions. And because Workman Services handles design, supply, installation, testing, commissioning, and maintenance, you get a complete solution rather than just a boxed unit.

Our team helps you size the system correctly, plan the ductwork, and keep everything running smoothly for the long haul. That end-to-end support is what turns a great product into a great outcome for your project.

Frequently Asked Questions

What is the EKDM 2233 Air Handling Unit used for?

The EKDM 2233 Air Handling Unit is an ultra-capacity modular AHU designed for large-scale projects that need high air volumes and strict air quality. It’s ideal for hospitals, pharmaceutical plants, airports, industrial facilities, and commercial complexes where reliable cooling, purification, and ventilation are critical.

How much air can the EKDM 2233 AHU handle?

This unit delivers a rated air volume of 700,000 m³/h, making it suitable for mega-projects. It also offers a cooling capacity of 1233 kW, which is roughly 351 tons of refrigeration or about 4.2 million BTU/hr — enough to serve very large, high-traffic spaces.

Is the EKDM 2233 suitable for cleanrooms and sterile environments?

Yes! With optional HEPA filtration on top of pleated primary and medium bag filters, plus an extremely low leakage rate of just 0.02% at −1000 Pa, it delivers sterile, contamination-free airflow. That makes it a strong fit for operating theatres, pharma production, and other controlled environments.

What certifications does this high capacity air handling unit carry?

It is AHRI and EUROVENT certified, so its performance and reliability are independently verified against globally recognized standards. This gives specifiers and facility owners confidence that the unit performs exactly as rated.

How energy efficient is the unit?

Very! High-efficiency dual impeller fans, optimized copper coils, and low-conductivity polyurethane foam insulation (0.0188 W/m·K) all work together to reduce energy consumption. The thermal bridge-free casing further prevents heat loss, helping lower long-term operating costs.

Can Workman Services supply and install the EKDM 2233 in Pakistan?

Absolutely. Workman Services provides end-to-end HVAC&R solutions — including system design, supply, installation, testing, commissioning, and maintenance — across Lahore, Rawalpindi, Faisalabad, and the UAE. Our certified team ensures the unit is sized and installed correctly for your specific project.

Ready to Power Your Next Mega-Project?

When the stakes are high and the space is huge, you need equipment that performs without compromise. The EKDM 2233 Air Handling Unit brings together ultra-high capacity, sterile air quality, energy efficiency, and certified reliability in one flexible, modular package.

Ready to bring dependable comfort and clean air to your hospital, airport, plant, or commercial complex? Get in touch with Workman Services today for expert advice, accurate sizing, and professional supply and installation — and let’s build something remarkable together!
