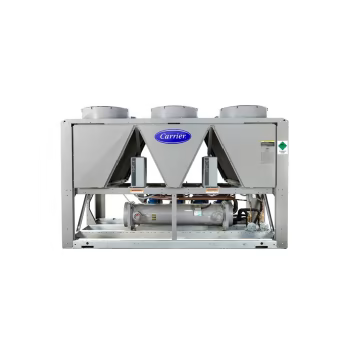

AquaSnap® Air-Cooled Liquid Chiller 30RB

Description

Performance Features

• Full-load EER values up to 10.3 and IPLV values up to 17.1 (units with Greenspeed intelligence)
• ASHRAE 90.1 complaint / AHRI certified
• High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels
• Operation from -20 °F to 125 °F ambient conditions
• Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
• Hydronic pump package (with or without VFD) on sizes 060-190
• Desuperheater
• Robust SIT evaporator

Additional Important Options

• Energy Management Module minimizes chiller energy consumption
• Non-fused disconnect switch
• Minimum load control
• Low ambient head pressure control
• ComfortLink™ controls with scrolling marquee display module
• BACnet™ communication or BACnet and LON translator control
• EXV (electronic expansion valve)
• AlCu or CuCu condenser coil

Reliability Features

• ASME constructed evaporators / ETL (and ETL Canada) listed
• Heavy-gauge galvanized steel frame
• Security grilles and Hail guards/Privacy screen choices
• Low ambient head pressure control
• Coil corrosion coatings available on all coil types
• High short circuit current rating
• EXV (Electronic expansion valve)

Maintenance Features

• Over 15 diagnostic functions
• Permanently lubricated fan motor bearings
• Compressor suction service valves
• Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
• Unit-mounted, non-fused disconnect
• Remote service port for easier machine diagnostics

Installation Features

• Factory charged with Puron refrigerant (R-410A)
• Integrated hydronic pump package (with or without VFD) on sizes 060-190 (factory-installed option, but N/A with heat recovery option)
• Desuperheater
• Remote cooler kit
• Single or dual-point electrical connections available
• Integral control transformer
• Structurally robust base

Factory-Installed Options

• High efficiency variable condenser fans (Greenspeed Intelligence)
• Hydronic pump package with or without VFD (sizes 060-190)
• Heat Reclaim
• Condenser coil options:
  • Microchannel:
    • Non-coated
    • E-coated
  • Aluminum fins:
    • Non-coated
    • Pre-coated
    • E-coated
  • Copper fins:
    • Non-coated
    • E-coated
• Non-fused disconnect
• Minimum load control
• Security grilles
• Energy Management Module
• Compressor sound reduction enclosures
• Service option
• Compressor suction service valve
• Condenser coil trim panels
• Condenser coil upper hail guards
• Full end screen
• BACnet™ Communication
• BACnet™ translator control
• LON (local operating network) translator control
• Low ambient temperature head pressure control
• Single or dual-point electrical connection
• Freeze protection (cooler heaters)
• Suction line insulation
• High short circuit current rating
• CRN cooler

Field-Installed Accessories

• Minimum load control
• Security grilles
• Condenser coil full hail guards
• Navigator™ display
• Remote enhanced display
• Chillervisor System Manger III multi-unit control
• GFI convenience outlet
• Energy Management Module
• Touch Pilot™ display
• LON (local operating network) translator control
• BACnet™ translator control
• Remote service port
• Remote cooler
• Condenser coil trim panels
• Low ambient temperature head pressure control
• Dual-chiller accessory kit
