Description

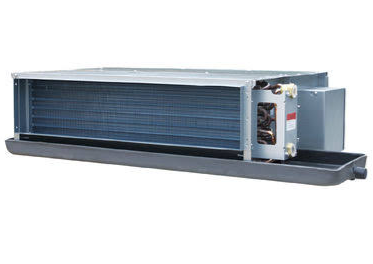

EKCW-DA 1600 Horizontal Water Recessed Duct able Fan Coil Unit
The EKCW-DA 1600 is a horizontal water recessed duct able fan coil unit designed for concealed ceiling installation. It provides efficient cooling and heating performance with a centrifugal fan, three-speed operation, and 75 Pa external static pressure. Its compact concealed design is suitable for ducted air distribution in commercial and residential applications.
Why Use EKCW-DA 1600?
- 13.00 kW nominal cooling capacity
- 25.53 kW nominal heating capacity
- Airflow up to 1861 CFM
- 75 Pa external static pressure
- Three-speed fan operation
- Copper tube coil with hydrophilic aluminum fins
- Concealed ceiling installation
- Suitable for ducted air distribution
- Designed for convenient installation and maintenance
Where Is It Used?
- Offices
- Hotels
- Shopping malls
- Hospitals
- Banks
- Shops
- Residential buildings
- Commercial buildings
- Concealed ceiling ducted applications
Technical Specifications
| Specification | EKCW-DA 1600 |
|---|---|
| Model | 1600DA |
| Cooling Capacity | 13.00 kW |
| Heating Capacity | 25.53 kW |
| Airflow – High | 1861 CFM |
| Airflow – Medium | 1749 CFM |
| Airflow – Low | 1360 CFM |
| External Static Pressure | 75 Pa |
| Sound Pressure | 52.9 dB(A) |
| Water Flow | 1.23 m³/h |
| Water Pressure Drop | 20 kPa |
| Rated Power – High | 665 W |
| Rated Current – High | 3.10 A |
| Power Supply | 220–240V / 1Ph / 50Hz |
| Condensate Drain | Rc3/4 |
| Installation | Concealed Ceiling / Ducted |
| Coil | Copper Tube with Hydrophilic Aluminum Fin |
| Fan Type | Centrifugal Forward-Curved |
| Fan Motor | Direct Drive, 3-Speed |
